Sea-Dog 4266861 20 Gang Screw Type Comination Buss Bar - 426686-1 - 354-4266861F1
|
$40.19
Access Code Required
Enter your access code to unlock purchasing for this item.

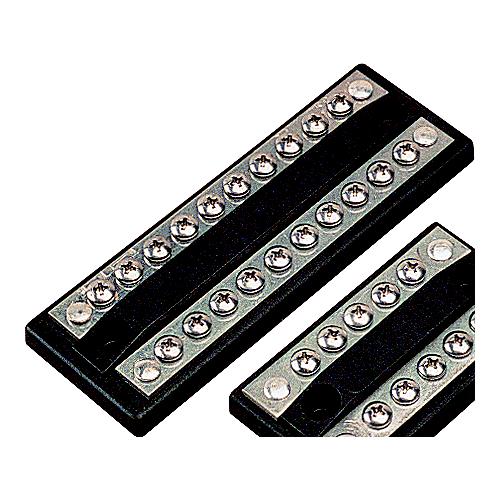

This Combination Buss Bar features separate buss strips that allow both negative and positive connections on the same block. Constructed of tin plated brass and ABS. Designed for use with tinned copper marine wire which shares the same expansion rate to prevent loosening wires and reducing electrolytic corrosion caused by pairing two disparate metals. Maximum: 48VDC, 100A. #8-32 terminals. Installs with two #10 RH fasteners (not included).
| Part #: | 354-4266861 |
| Manufacturer: | SEA-DOG LINE |
| Manufacturer Part #: | 426686-1 |
| Order In Multiples Of: | 1 |

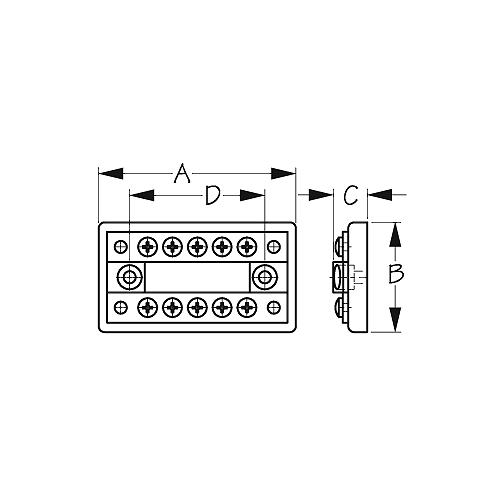

| D | 4-5/16" |
| Gang | 20 x #8-32 |
| C | 9/16" |
| B | 1-13/16" |
| A | 5-5/16" |
| Number of Gangs | 20 x #8-32 |
Variations
| 354-4266851 | Sea-Dog 4266851 10 Gang Screw Type Comination Buss Bar |
| 354-426686 | Sea-Dog 426686 20 Gang Screw Type Comination Buss Bar, Bulkl |
