12V Replacement Actuator - 101 Xds Series - 15057-001 - 622-15057001F1
|
$594.89
Access Code Required
Enter your access code to unlock purchasing for this item.
12V actuator for Trim Tabs as well as ski boats and tow boats. Includes Deutsch connector and 6' cable. Mounting brackets sold separately. 101 XDS Series: Extreme Duty "short" series. For LS trim Tabs, 2009+ Airboat tabs, and OEM specific kits and limited space applications, it is the shortest actuator we manufacture.
| Part #: | 622-15057001 |
| Manufacturer: | LENCO |
| Manufacturer Part #: | 15057-001 |
| Model Number: | 101 XDS |
| UPC: | 874847003223 |
| Order In Multiples Of: | 1 |

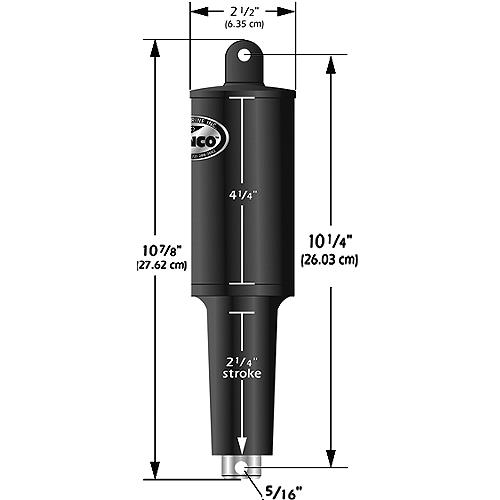

| Model | 101 XDS |
| Length | 10-7/8" |
| Stroke | 2.25" |
| Hole | 5/16" |
| Volts | 12 |
| Type | TT/TB |
| Length: Stroke | 2.25" |
| Voltage | 12 |
Variations
| 622-15054001 | 12V Replacement Actuator - 101 Standard Series |
| 622-15055001 | 12V Replacement Actuator - 101 XD Series |
| 622-15056001 | 12V Replacement Actuator - 101 XD Series |
| 622-15059001 | 12V Replacement Actuator - 102 Standard Series |
| 622-15060001 | 12V Replacement Actuator - 102 XD Series |
| 622-15061001 | 24V Replacement Actuator - 101 Standard Series |
| 622-15117001 | 12V Replacement Actuator - 101 XDS Series |
| 622-15118001 | 12V Replacement Actuator - 102 HD Series |
| 622-15119001 | 12V Replacement Actuator - 1.25 XDS Series |
| 622-15120001 | 12V Replacement Actuator - 1.25 XDS Series |
| 622-15121001 | 12V Replacement Actuator - 1.25 XDS Series |
| 622-15122001 | 12V Replacement Actuator - 1.25 XDS Series |
| 622-15129001 | 12V Replacement Actuator - 102 Fast |
