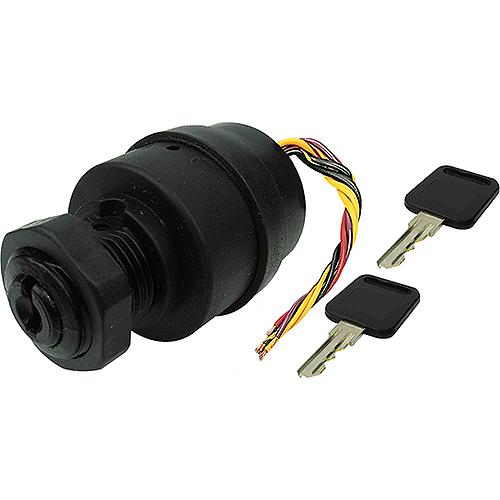

Seachoice 11831 3 Position Magneto Ignition Switch, 6 Wire - 11831 - 50-11831F1
|
$69.59
Access Code Required
Enter your access code to unlock purchasing for this item.
3 Positions: Off - Ignition - Start. "Push to Choke." Includes two keys. Stem Width: 13/16"Ignition: 15 Amps @ 12VSolenoid: 30 Amps @ 12VChoke: 7 Amps @ 12V" 11831 Wires: Red = 12V+, Purple = ignition, Black/Magenta = ground, Black/Yellow = magneto, Yellow/Black = choke
| Part #: | 50-11831 |
| Manufacturer: | SEACHOICE |
| Manufacturer Part #: | 11831 |
| UPC: | 719249118314 |
| Order In Multiples Of: | 1 |
| Material | Polypropylene |
| Max Panel Thickness | 5/8" |
| Terminals | 6 Wire |
| Case | 12 |
| Max Panel | 5/8" |
Variations
| 50-11821 | Seachoice 11821 3 Position Magneto Ignition Switch, 6 Screw |
