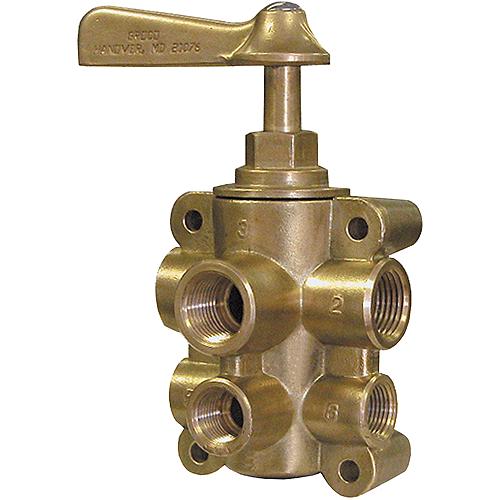

Groco 6-Port Fuel Valve 1/2" Supply - Fv-65038 - 34-Fv65038F1
|
$353.49
Access Code Required
Enter your access code to unlock purchasing for this item.
Six-port fuel valves are used where 2 tanks supply a single engine, and a return to each supply tank is required. ABYC H33.9.2 states that fuel system valves must have an independent means of support. That's why regular in-line valves are not appropriate for fuel systems applications. Provides flow to or from either of two connected tanks with its "L" shaped flow pattern and 180° handle actuation. NOT TO BE USED IN POTABLE WATER SYSTEMS.
| Part #: | 34-FV65038 |
| Manufacturer: | GROCO |
| Manufacturer Part #: | FV-65038 |
| UPC: | 742985142886 |
| Order In Multiples Of: | 1 |
| Input | 1/2" NPT |
| Outlet | 3/8" NPT |

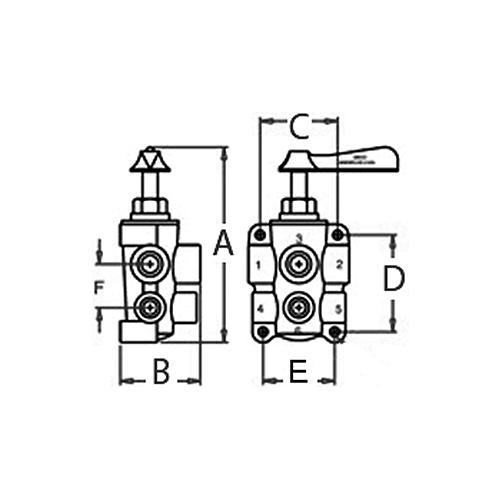

| A | 5.62" |
| B | 2.31" |
| C | 2.23" |
| D | 2.78" |
| E | 2.06 |
| F | 1.25" |
| Input Thread Size/Type | 1/2" NPT |
| Outlet Size | 3/8" NPT |
