Blue Sea Systems 5196 Common Source Fuse Bock - 5196-Bss - 661-5196F1
|
$104.75
Access Code Required
Enter your access code to unlock purchasing for this item.

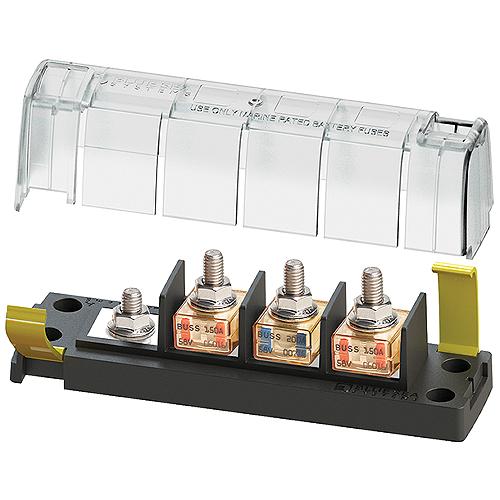

Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection The common source fuse block (5196) provides 3 loads from a single sourceClip-on cover insulates terminal connectionsVersatile wiring options allow all wires to come out a single sideLabel recesses for easy circuit identificationOne-piece stainless flange nuts ensure safe and secure connectionsIgnition protected when used with MRBF fusesFuses sold separately Specifications:Voltage Max. Operating: 58V DCAmperage Max. Operating: 240A per circuitTerminal Fuses Available: 30-300 Amps
| Part #: | 661-5196 |
| Manufacturer: | BLUE SEA SYSTEMS |
| Manufacturer Part #: | 5196-BSS |
| UPC: | 632085051969 |
| Order In Multiples Of: | 1 |
| Stud | M8 (5/16"-18) |
| Fuse | 3 |
| Description | Common Source |
| Fuse Type | 3 |
Variations
| 661-5194 | Blue Sea Systems 5194 Independent Source Fuse Bock |
